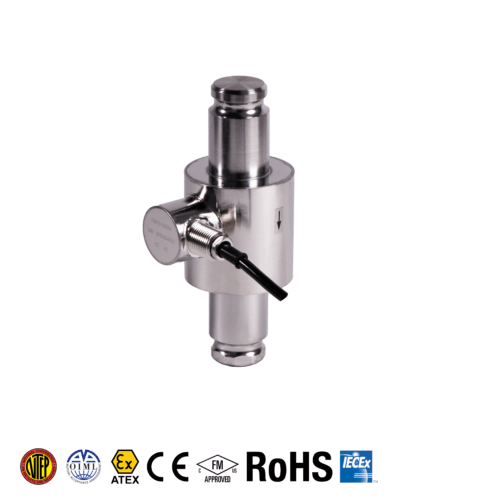

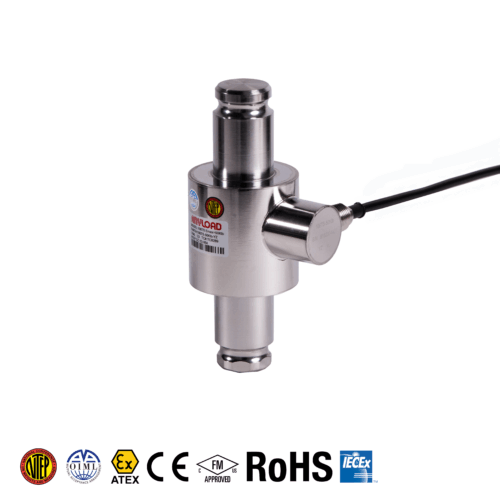

106TS-YZ Rocker Pin Canister Load Cell
The Anyload 106TS-YZ is a 2Cr13 stainless steel rocker pin canister load cell available in 50 Klb, 100 Klb, 30 t, SE 30t, and SE 50t capacities (22,680 kg to 45,360 kg standard; SE compact-height variants), with NTEP Class IIIL and OIML MAA C3 certification, IP68 welded seal, and FM approval (upon request).
PRODUCT DETAILS
The 106TS-YZ is a 2Cr13 stainless steel rocker pin canister load cell engineered for truck scales, railroad scales, and large hopper and silo weighing systems requiring NTEP and OIML certified accuracy in a robust, IP68-sealed body. Available in standard-height 50 Klb (22,680 kg), 100 Klb (45,360 kg), and 30 t variants, plus compact SE 30t and SE 50t short-body versions, the 106TS-YZ covers both new installations and field replacement of existing truck and railroad scale load cells across multiple mounting configurations.
The 106TS-YZ connects directly to truck scale indicators, amplifiers, and 4–20 mA signal conditioners for both legacy and modern scale control systems. FM approval and ATEX and IECEx versions are available.

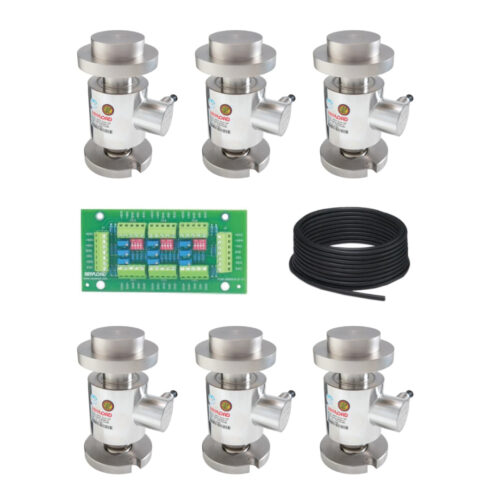

Mounting kit 106TS-PARTS-C is availble upon request.
Most Common Applications: Truck scale installations (new and replacement), railroad and rail weighbridge scales, large hopper and silo weighing.
| Capacities | 50,000 lb / 22,680 kg, 100,000 lb / 45,360 kg, 30 t (66,139 lb), SE30t (66,139 lb compact), SE50t (110,231 lb compact) |
|---|---|
| Combined Error | – |
| Non-Linearity | < ±0.030% FS |
| Safe Overload | 150% of full scale |
| Ultimate Overload | 300% of full scale |
| Full Scale Output | 2.0 mV/V ± 0.1% |
| Maximum Excitation | 10 V DC (15 V Maximum) |
| Bridge Resistance | 1150 Ω ± 50 (Input); 1000 Ω ± 5 (Output) |
| Operating Temperature | – |
| Compensated Temperature | −10°C to 50°C (14°F to 122°F) |
| Sealing Standard | IP68 Welded Seal |
| Material | 2Cr13 Stainless Steel |
| Protective Coating | None (bare stainless steel) |
