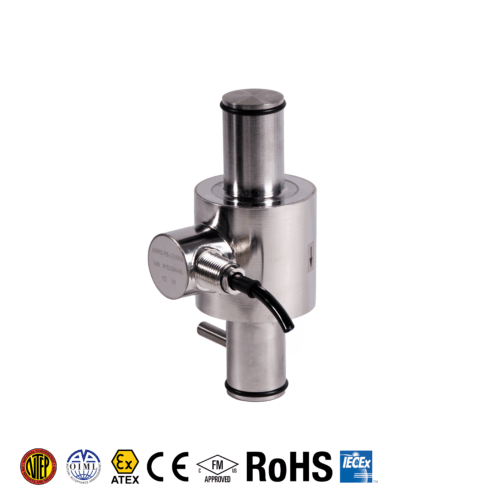

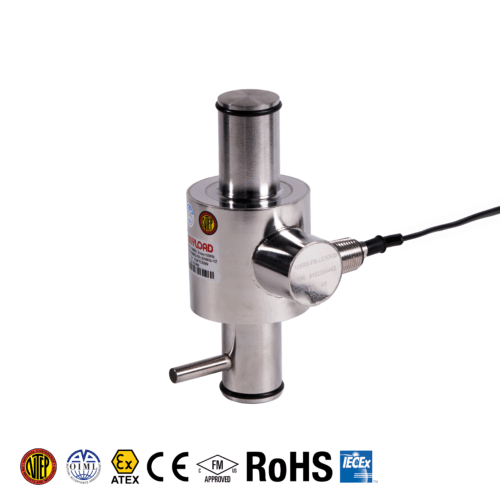

106RS-FB-YZ Canister Load Cell
The Anyload 106RS-FB-YZ is a stainless steel compression canister load cell available in capacities of LE50 Klb (22,680 kg), 250 kN, and 56 Klb (25,402 kg), featuring IP68 welded-seal protection and NTEP Class IIIL certification for heavy-duty industrial weighing. It is an ideal choice for silo, hopper, and high-capacity platform weighing systems.
PRODUCT DETAILS
The 106RS-FB-YZ is a heavy-duty stainless steel compression canister load cell purpose-built for high-capacity industrial weighing applications where accuracy, durability, and environmental protection are non-negotiable. Constructed from 2Cr13 stainless steel with a fully welded IP68 seal, it withstands continuous immersion, pressure washing, and harsh outdoor conditions — making it well-suited for truck scales, rail scales, silo and hopper weighing, and large tank systems. Available in LE50 Klb (22,680 kg), 250 kN, and 56 Klb (25,402 kg) capacities, the 106RS-FB-YZ delivers a full-scale output of 1.8 mV/V (LE50 Klb) or 2.0 mV/V (250 kN & 56 Klb), making it directly compatible with a wide range of standard weight indicators, amplifiers, and junction box summing systems. Its standard mV/V output allows seamless integration with virtually any weight indicator or signal amplifier that accepts a Wheatstone bridge signal. NTEP 1:10,000 Class IIIL certification qualifies it for legal-for-trade commercial weighing in North America across the 10t–50t system range. ATEX, FM, and IECEx hazardous area approvals are available on request for installations in explosive atmospheres.
Mounting accessories are available upon request: MC106RS-FB-A1 cap and MB106RS-FB-A1 base.
Most Common Applications: Truck scales, rail scales, silo and hopper weighing, large capacity tank and vessel weighing, heavy industrial platform scales, compression force measurement in Original Equipment Manufacturer (OEM) and process industries.
| Capacities | LE50 Klb (22,680 kg), 250 kN (56,202 lbf), 56 Klb (25,402 kg) |
|---|---|
| Combined Error | < ±0.030% FS |
| Non-Linearity | – |
| Safe Overload | 150% of full scale |
| Ultimate Overload | 300% of full scale |
| Full Scale | LE50 Klb: 1.8 mV/V ± 0.1%; 250 kN & 56 Klb: 2.0 mV/V ± 0.1% |
| Output | 10 V DC (15 V Maximum) |
| Maximum Excitation | Input: 1080 Ω ± 10; Output: 1000 Ω ± 5 |
| Bridge Resistance | – |
| Operating Temperature | −10°C to 50°C (14°F to 122°F) |
| Compensated Temperature | Welded Seal / IP68 |
| Sealing Standard | 2Cr13 Stainless Steel |
| Material | None (bare stainless steel) |
| Protective Coating |
