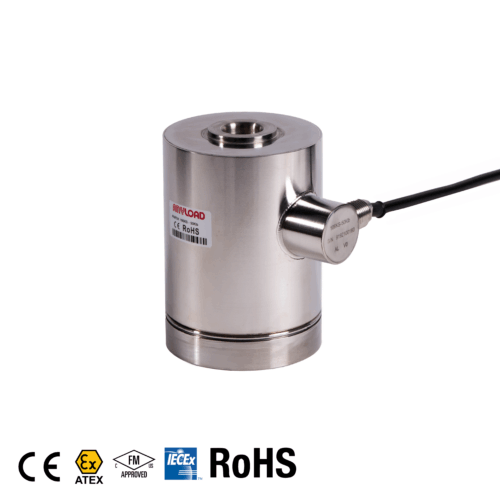

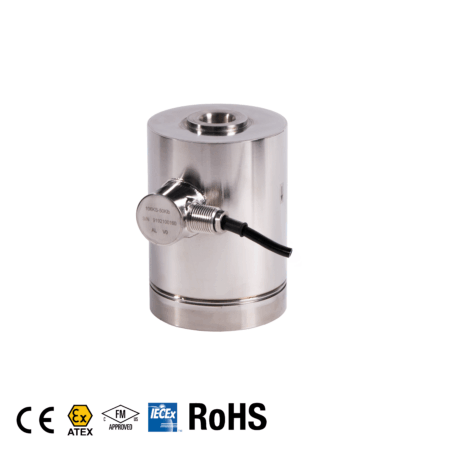

The Anyload 106KS is a 17-4PH stainless steel low-profile compression canister load cell available in 50,000 lb and 100,000 lb (22,680 kg and 45,360 kg) capacities, with IP68 welded seal. Its premium 17-4PH stainless steel construction and low-profile body make it the preferred choice across industries such as bulk material handling, agriculture, mining, and heavy Original Equipment Manufacturer (OEM).
The 106KS is a premium 17-4PH stainless steel compression canister load cell at 50,000 lb and 100,000 lb (22,680 kg and 45,360 kg) capacity, built Built to interchange with widely used canister load cells from Coti Global, Mettler-Toledo, and Totalcomp, the 106KS allows plant engineers and system integrators to retrofit or replace existing scale systems without redesigning surrounding structures. The load cell is designed for use with compatible mounting hardware, including a mounting cap, pin, and base plate (ordered separately).
Mounting hardware is ordered separately by capacity. The 106KS millivolt/volt output connects directly to indicators, amplifiers, and 4–20 mA signal conditioners. FM approval and ATEX and IECEx versions are available.
Mounting accessories are available upon request: MC106KS cap, F106KS-1 pin, MB106KS base.
Most Common Applications: Tank and hopper scales, silo weighing, truck and railcar scales, and other high-capacity industrial weighing systems.
| Capacities | 50,000 lb (22,680 kg), 100,000 lb (45,360 kg) |
|---|---|
| Combined Error | – |
| Non-Linearity | < ±0.050% FS |
| Safe Overload | 150% of full scale |
| Ultimate Overload | 300% of full scale |
| Full Scale Output | 2.0 mV/V ± 0.25% |
| Maximum Excitation | 10 V DC (15 V Maximum) |
| Bridge Resistance | 700 Ω ± 20 (Input); 700 Ω ± 5 (Output) |
| Operating Temperature | – |
| Compensated Temperature | −10°C to 50°C (14°F to 122°F) |
| Sealing Standard | IP68 Welded Seal |
| Material | 17-4PH Stainless Steel |
| Protective Coating | None (bare stainless steel) |
