102THM5 Weigh Module for Double-Ended Beam Load Cells

IMAGES

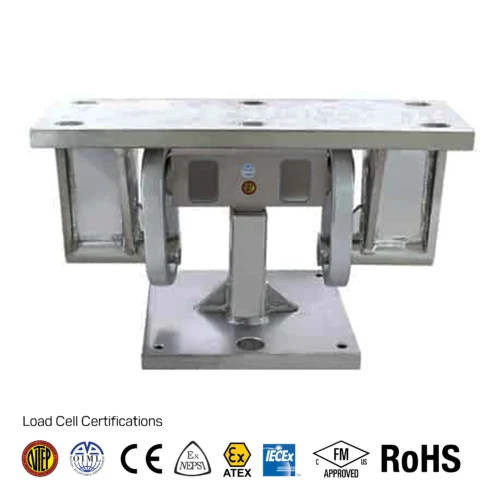

The Anyload 102THM5 is an alloy steel weigh module for 102TH double-ended beam load cells, available in capacities from 50,000 lb to 75,000 lb. Center-pivoted, end-loaded, and completely self-centering, allowing multi-directional horizontal movement.

PRODUCT DETAILS

The 102THM5 is a heavy-capacity alloy steel weigh module for double-ended shear beam load cells in demanding tank, vessel, and silo weighing applications from 50,000 lb to 75,000 lb per loading point. The center-pivoted, end-loaded, self-centering design provides optimal loading conditions for the load cell, while the link mechanism allows multi-directional horizontal movement — accommodating thermal expansion, wind, vibration, and seismic displacement without the need for separate check rod systems.

The self-centering links ensure that the load cell always receives a correctly centered compressive load, protecting it from bending and off-axis forces that can degrade measurement accuracy and shorten service life. An improved version with 8-shaped links for increased strength is available as the 102THM5-AA.

Most Common Applications: Large industrial tank and silo weighing, heavy process vessel scales, outdoor high-capacity platform weighing.

Capacities

102THM5-(50-75)Klb: 50,000 lb to 75,000 lb (22,680 kg to 34,019 kg)

Material

Alloy Steel
