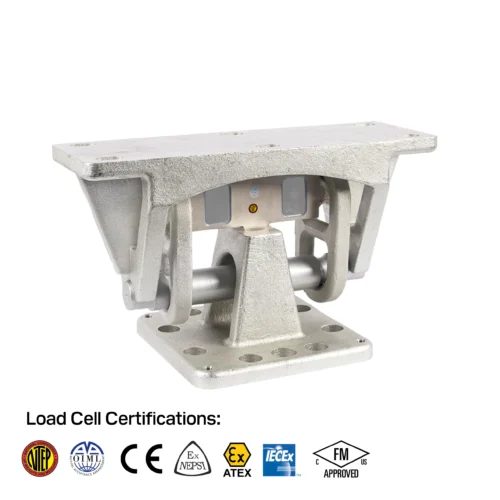

The Anyload 102THM5-AA is an enhanced alloy steel weigh module for 102TH double-ended beam load cells, available in capacities from 50,000 lb to 75,000 lb. It features 8-shaped links for greatly improved strength over the standard O-shaped design, plus vent holes for concrete pour installations.
The 102THM5-AA is an upgraded version of the 102THM5 weigh module for double-ended shear beam load cells. Its key advancement is the 8-shaped link design, which provides significantly greater structural strength compared to the O-shaped links used in the standard 102THM5, making it better suited for high-cycle, dynamic, and shock-loaded applications from 50,000 lb to 75,000 lb.
Like the standard model, the 102THM5-AA is center-pivoted, end-loaded, and self-centering, allowing multi-directional horizontal movement. Vent holes in the base are a notable addition — they allow air to escape during concrete pours, preventing the formation of air pockets that could compromise the structural integrity of a concrete-embedded installation.
Most Common Applications: Tank and silo weighing, heavy dynamic-load vessel scales, outdoor bulk storage, hopper weighing.
| Capacities | 102THM5-AA-(50-75)Klb: 50,000 lb to 75,000 lb (22,680 kg to 34,019 kg) |
|---|---|
| Material | Alloy Steel |
