102ESM2 Weigh Module for Double-Ended Beam Load Cells

IMAGES

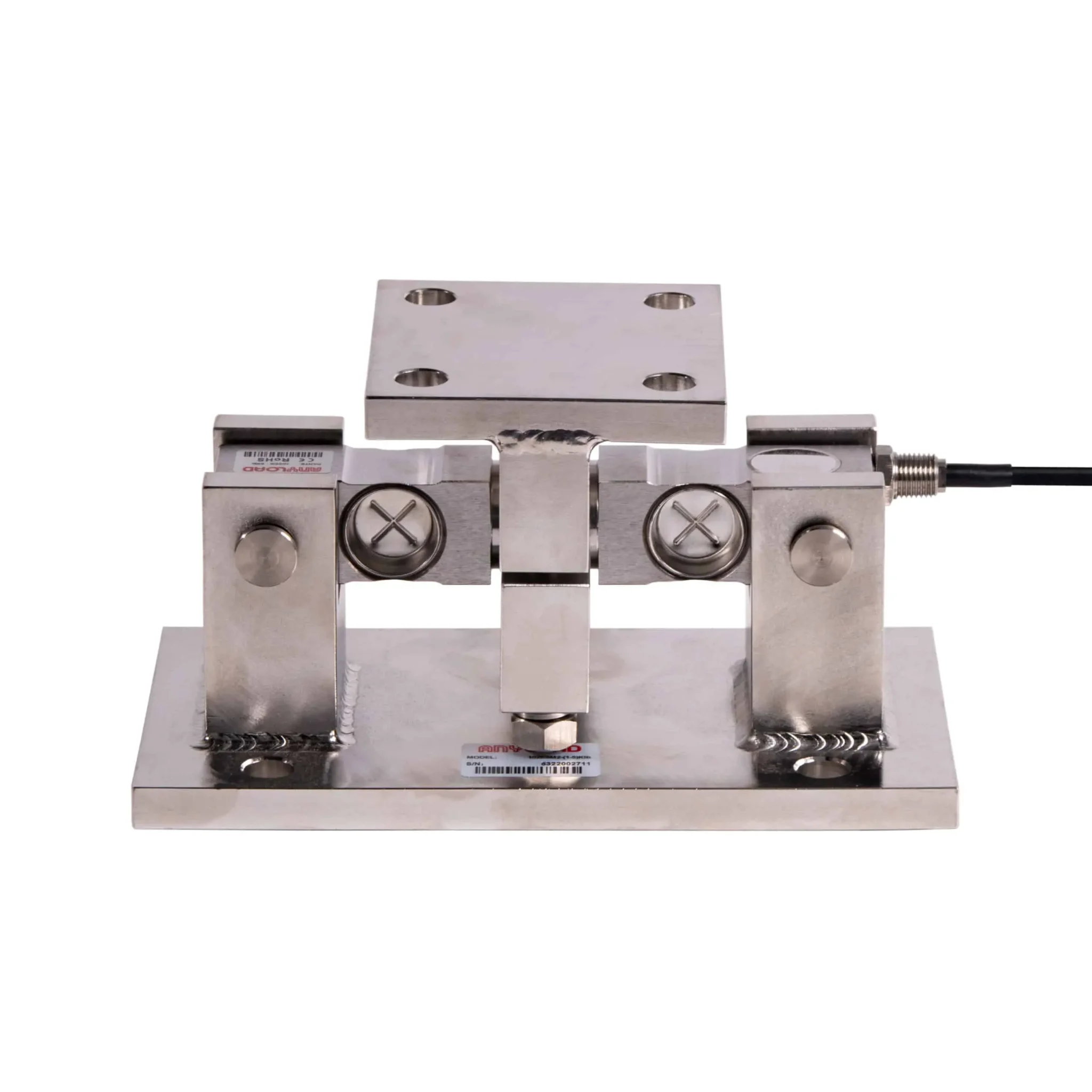

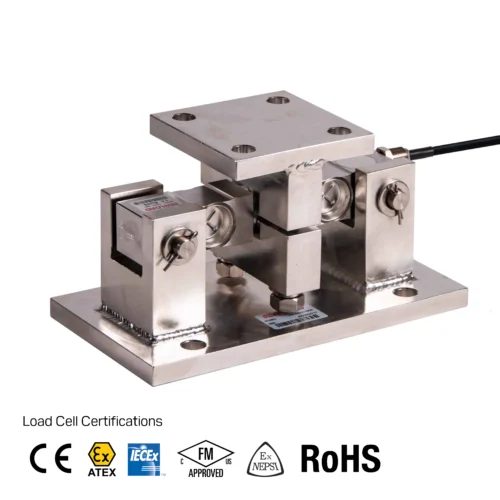

The Anyload 102ESM2 is a stainless steel weigh module for 102ES double-ended beam load cells, available in capacities from 1,000 lb to 75,000 lb. Self-checking with lifting protection, it is a compact and corrosion-resistant solution for medium-to-high capacity tank and vessel weighing in hygienic and washdown environments.

PRODUCT DETAILS

The 102ESM2 is the stainless steel version of the 102EHM2, providing the same compact, self-checking performance and lifting protection for double-ended shear beam load cells across the 1,000 lb to 75,000 lb capacity range — in stainless steel for corrosive, food, pharmaceutical, and washdown applications.

Its compact footprint and low overall height make it well-suited for retrofit installations on existing stainless tanks and vessels where minimal modification of the support structure is possible. The alloy steel version (102EHM2) is also available for standard environments.

Most Common Applications: Stainless tank and vessel weighing, food and pharmaceutical hopper scales, washdown platform weighing, retrofit weighing on existing stainless steel equipment.

Capacities

102ESM2-(1-5)Klb: 1,000 lb to 5,000 lb (454 kg to 2,268 kg); 102ESM2-(10-25)Klb: 10,000 lb to 25,000 lb (4,536 kg to 11,340 kg); 102ESM2-35Klb: 35,000 lb (15,876 kg); 102ESM2-(50-60)Klb: 50,000 lb to 60,000 lb (22,680 kg to 27,216 kg); 102ESM2-75Klb: 75,000 lb (34,019 kg)

Material

Stainless Steel
