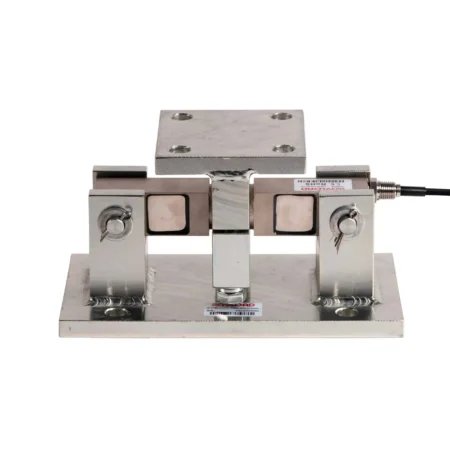

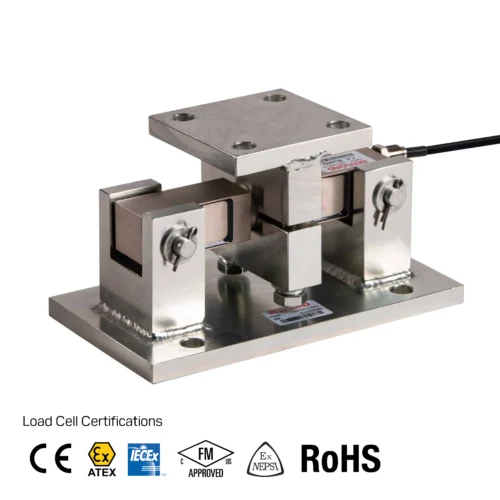

The Anyload 102EHM2 is an alloy steel weigh module for 102EH double-ended beam load cells, available in capacities from 1,000 lb to 75,000 lb. Self-checking with lifting protection, it is a compact and economical solution for medium-to-high capacity tank and vessel weighing applications.
The 102EHM2 is a compact alloy steel weigh module for double-ended shear beam load cells in medium-to-high capacity tank, vessel, and platform weighing from 1,000 lb to 75,000 lb per loading point. Its self-checking design ensures accurate and repeatable load distribution at each weighing point, while integrated lifting protection prevents the module from being displaced by uplift forces in dynamic or wind-exposed installations.
The 102EHM2’s compact footprint makes it well-suited for applications where space is limited or where a low overall height is required — such as retrofit installations on existing tanks and vessels. A stainless steel version (102ESM2) is also available.
Most Common Applications: Medium-capacity industrial tank and vessel weighing, hopper and silo scales, platform weighing in space-constrained installations, retrofit weighing on existing tanks and vessels.
| Capacities | 102EHM2-(1-5)Klb: 1,000 lb to 5,000 lb (454 kg to 2,268 kg); 102EHM2-(10-25)Klb: 10,000 lb to 25,000 lb (4,536 kg to 11,340 kg); 102EHM2-35Klb: 35,000 lb (15,876 kg); 102EHM2-(50-60)Klb: 50,000 lb to 60,000 lb (22,680 kg to 27,216 kg); 102EHM2-75Klb: 75,000 lb (34,019 kg) |
|---|---|
| Material | Alloy Steel |
