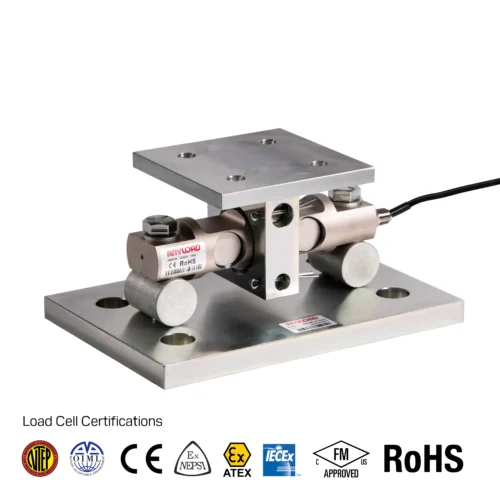

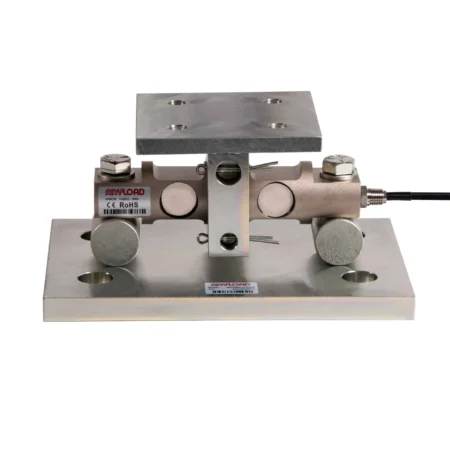

The Anyload 102DHM3 is an alloy steel weigh module for 102DH double-ended beam load cells, available in capacities from 5,000 lb to 250,000 lb. Center-pivoted and self-checking with anti-lifting protection, it features a sliding pin design to compensate for thermal expansion and contraction.
The 102DHM3 is a heavy-duty alloy steel weigh module for double-ended shear beam load cells in large-scale tank, vessel, silo, and platform weighing applications from 5,000 lb to 250,000 lb per loading point. The center-pivoted, self-checking design ensures accurate and repeatable load measurement at each support point, while integrated anti-lifting protection prevents the module from being displaced by uplift forces, wind, or seismic loading.
The sliding pin design is a key feature: as the tank or vessel expands and contracts with temperature changes, the sliding pin allows the structure to move freely in the horizontal plane without transmitting bending or lateral forces to the load cell. This protects the cell from off-axis loading that can compromise accuracy and shorten service life.
Most Common Applications: Large industrial tank and silo weighing, heavy-duty process vessel scales, bulk storage hopper weighing, high-capacity outdoor platform scales.
| Capacities | 102DHM3-(5-20)Klb: 5,000 lb to 20,000 lb (2,268 kg to 9,072 kg); 102DHM3-(30-75)Klb: 30,000 lb to 75,000 lb (13,608 kg to 34,019 kg); 102DHM3-100Klb: 100,000 lb (45,359 kg); 102DHM3-150Klb: 150,000 lb (68,039 kg); 102DHM3-(200-250)Klb: 200,000 lb to 250,000 lb (90,718 kg to 113,398 kg) |
|---|---|
| Material | Alloy Steel |
