102BSM5 Weigh Module for Double-Ended Beam Load Cells

IMAGES

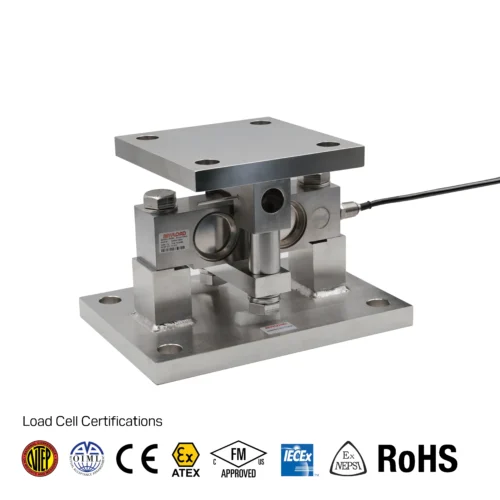

The Anyload 102BSM5 is a compact stainless steel weigh module for 102BS double-ended shear beam load cells, available in capacities from 50,000 lb to 75,000 lb. Self-checking with integrated uplift protection, its symmetrical design allows the top plate to bolt directly to tank legs without additional hardware.

PRODUCT DETAILS

The 102BSM5 is a compact and robust stainless steel weigh module for 102BS double-ended shear beam load cells in heavy-capacity tank and vessel weighing from 50,000 lb to 75,000 lb per loading point. Its symmetrical, self-checking design ensures accurate load distribution at each weighing point while the top plate is designed to bolt directly to tank or vessel legs without requiring additional mounting hardware — simplifying installation and reducing the number of components in the assembly.

Integrated uplift protection prevents the module from being displaced by dynamic forces, wind, or seismic loading. Stainless steel construction provides long-term corrosion resistance for outdoor, chemical, and food industry applications.

Most Common Applications: Industrial tank and vessel weighing, outdoor silo and storage tank scales, heavy chemical process weighing, large food industry vessel scales.

Capacities

102BSM5-(50-75)Klb: 50,000 lb to 75,000 lb (22,680 kg to 34,019 kg)

Material

Stainless Steel
