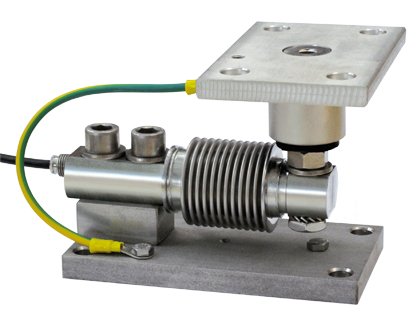

The Laumas TFGP is a AISI 304 stainless steel mounting kit for bending beam load cells (FCAL, FCAX series) supporting up to 500 kg (1,102 lb). It features a stainless steel and rubber compression joint upper plate, misalignment compensation, and a transport locking screw. Suitable for systems with at least 3 support points.
The TFGP is a fully stainless steel mounting kit for bending beam load cells in multi-leg industrial weighing systems. The AISI 304 stainless steel upper plate incorporates a rubber compression element that absorbs angular misalignments between the weighed structure and the support surfaces, ensuring accurate and even load distribution.
Lower plates and blocks are also in AISI 304 stainless steel, providing complete corrosion resistance for food, pharmaceutical, and outdoor weighing applications. A transport locking screw prevents load cell damage during shipping and installation. Both models are optimized for 3-point or more support structures.
Most Common Applications: Hygienic multi-leg platform scales, food production hopper and vessel weighing, pharmaceutical process equipment, 3- and 4-point weighing structures.
| Capacities | Up to 500 kg (1,102 lb) |
|---|---|
| Material | AISI 304 Stainless Steel |
