TFFSB Mounting Kit for Bending Beam Load Cells

IMAGES

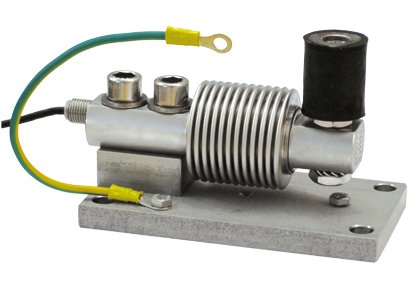

The Laumas TFFSB is an AISI 304 stainless steel mounting kit for bending beam load cells (FCAL, FCAX series) supporting up to 500 kg (1,102 lb). It features a stainless steel and rubber compression joint, an AISI 304 stainless steel lower plate and block, and a transport locking screw. Suitable for systems with at least 3 support points.

PRODUCT DETAILS

The TFFSB is a compact stainless steel mounting kit for bending beam load cells in light-capacity multi-leg weighing systems. Its upper plate incorporates a stainless steel and rubber compression joint that absorbs angular misalignments between the weighed structure and its support surfaces, ensuring that the load is applied correctly and consistently to the bending beam cell.

The lower plate and block are AISI 304 stainless steel throughout, making the TFFSB suitable for hygienic, food-grade, and washdown environments. A locking screw protects the load cell from damage during transport and assembly, and is released for normal operation once the structure is installed. Suitable for systems with 3 or more support points.

Most Common Applications: Small hygienic platform scales, food and pharmaceutical process equipment, multi-point support light vessel and hopper weighing, benchtop industrial scales.

Capacities

Up to 500 kg (1,102 lb)

Material

AISI 304 Stainless Steel
