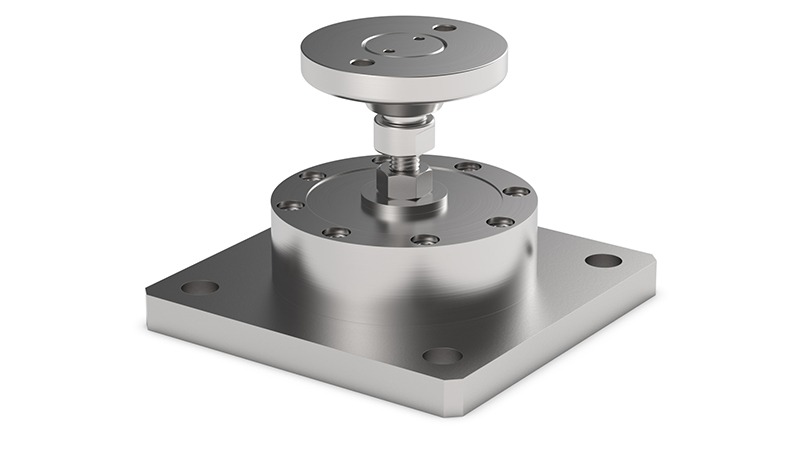

The Laumas PVCLSEN1090 is an AISI 304 stainless steel mounting kit certified according to EN 1090 for compression low-profile load cells (CLS series, 1,000–2,000 kg / 2,205–4,409 lb). It features a self-centering joint foot for lateral support, anti-tilt, and adjustable height.
The PVCLSEN1090 is a compact stainless steel mounting kit engineered for low-profile compression load cells in capacities from 1,000 kg (2,205 lb) to 2,000 kg (4,409 lb). The AISI 304 stainless steel self-centering joint foot resists lateral forces and prevents tilt while compensating for minor angular misalignments between the load cell and its support surface ensuring accurate, stable weighing.
Its adjustable height allows for precise leveling of multi-leg tank, vessel, and platform structures after installation. The kit is well-suited for food production, chemical processing, and pharmaceutical environments where full stainless construction is required. A simple earthing connection between upper and lower plates is recommended for electrical safety. Designed for 3- or 4-point support structures.
Most Common Applications: Tank and vessel weighing, food and pharmaceutical multi-leg platform scales, chemical process hopper weighing, outdoor weighing structures.
| Capacities | 1,000 kg (2,205 lb) to 2,000 kg (4,409 lb) |
|---|---|
| Material | AISI 304 Stainless Steel |
