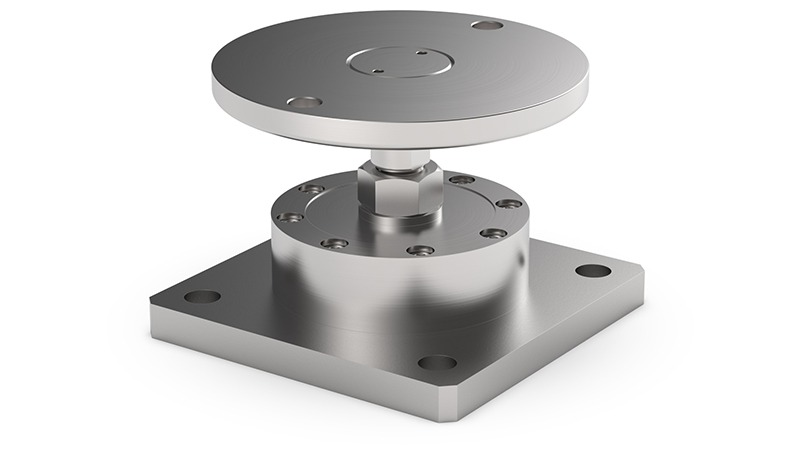

The Laumas PV80CLSEN1090 is an AISI 304 stainless steel mounting kit certified according to EN 1090 for compression low-profile load cells (CLS series, 5,000 kg / 11,023 lb). It features self-centering joint foot for side-load resistance, anti-tilt, and adjustable height.
The PV80CLSEN1090 is a stainless steel mounting kit engineered for CLS series 5,000 kg (11,023 lb) low-profile compression load cells. Its AISI 304 stainless steel self-centering joint foot resists lateral forces and prevents tipping while compensating for angular misalignments between the load cell and its supporting surface, ensuring reliable and accurate measurement.
The adjustable height allows field leveling during installation across 3- or 4-leg tank, vessel, and platform structures. Fully stainless construction makes it ideal for food, chemical, and pharmaceutical applications where corrosion resistance and hygienic surfaces are essential.
Most Common Applications: Food and pharmaceutical process vessel scales, outdoor corrosive-environment platform weighing, chemical processing hopper scales.
| Capacities | 5,000 kg (11,023 lb) |
|---|---|
| Material | AISI 304 Stainless Steel |
