PV80CLS Mounting Kit for Compression Low-Profile Load Cells

IMAGES

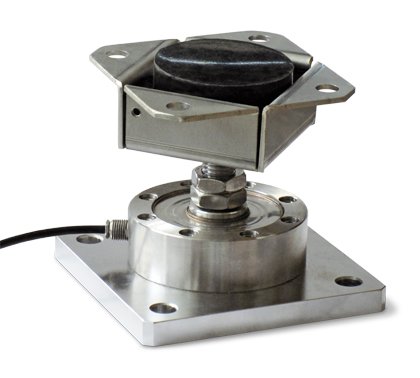

The Laumas PV80CLS is a mounting kit for compression low-profile load cells (CLS series, 5,000 kg / 11,023 lb) featuring an AISI 304 stainless steel adjustable upper plate and self-centering joint foot, with adjustable height and lateral force constraint. Designed for 3- or 4-point industrial weighing structures.

PRODUCT DETAILS

The PV80CLS provides a stainless steel mounting solution for 5,000 kg (11,023 lb) low-profile compression load cells. Its adjustable upper plate (AISI 304 stainless steel) and stainless self-centering joint foot automatically constrain lateral forces and prevent tipping, while accommodating minor misalignments between the support structure’s surfaces.

Height is field-adjustable to simplify leveling across 3- or 4-leg platform, tank, or vessel installations. The repositionable upper plate allows for various load cell orientations during installation. Best suited for industrial environments where stainless steel construction is preferred.

Most Common Applications: Industrial tank and silo weighing, 3- and 4-leg platform scales, process vessel weighing.

Capacities

5,000 kg (11,023 lb)

Material

AISI 304 Stainless Steel
