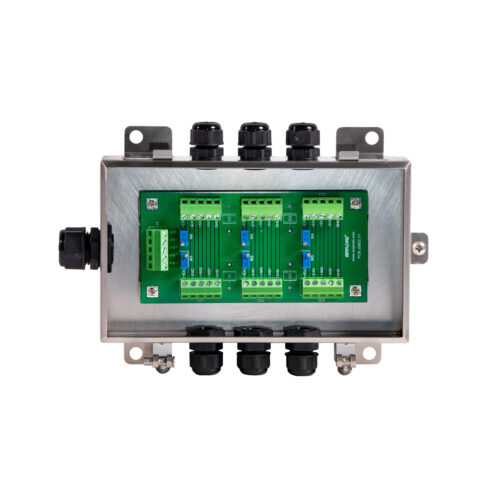

J06ES / J06ES-II Stainless Steel Junction Box
The Anyload J06ES and J06ES-II are stainless steel SS304 IP65 junction boxes for 2–6 load cells with individual excitation trim and independent potentiometers. The J06ES-II adds built-in lightning protection. FM, ATEX, and IECEx approved versions available.
PRODUCT DETAILS
The J06ES and J06ES-II are stainless steel SS304 junction boxes for 2–6 load cell weighing systems, offering robust IP65 environmental protection in a mid-size enclosure measuring 200×149×44 mm (7.9×5.9×1.7 inches). Both models feature individual excitation trim via independent potentiometers, enabling precise per-cell signal balancing for accurate combined weight output.
The J06ES-II version adds a built-in lightning protection circuit, making it the preferred choice for outdoor installations and environments with elevated risk of electrical transients. Stainless steel SS304 construction resists corrosion in food processing, chemical, outdoor, and wet industrial environments, while IP65 protection guards against dust and water jet ingress. Input cable fittings accept M16 cables (4–8 mm diameter); the output uses M20 fittings (5–9 mm diameter). FM Approved, as well as ATEX and IECEx certified versions available for hazardous area deployment.
Most Common Applications: Platform and floor scales, outdoor industrial weighing, OEM multi-cell scale systems.
| Channels | – |
|---|---|
| Number of Load Cells | 2 – 6 single cells |
| Input Cable Fittings | M16: 4 – 8 mm cable |
| Output Cable Fittings | M20: 5 – 9 mm cable |
| Enclosure Material | Stainless steel SS304 |
| IP Rating | IP65 |
| Lightning Protection | J06ES: No; J06ES-II: Yes |
| Dimensions | 200 x 149 x 43 mm (7.9 x 5.9 x 1.7 in) |
| Weight | 0.9 kg (2.0 lb) |
