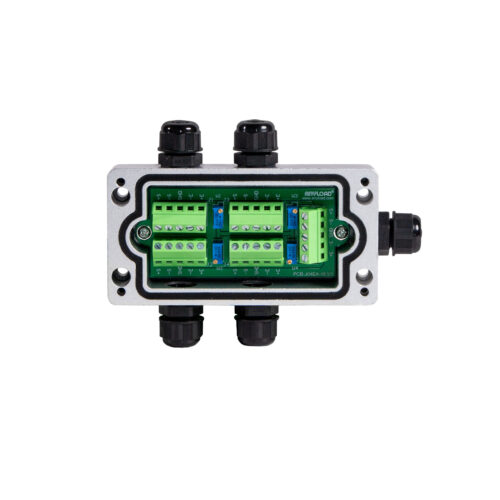

J04EA-16 Aluminum Junction Box

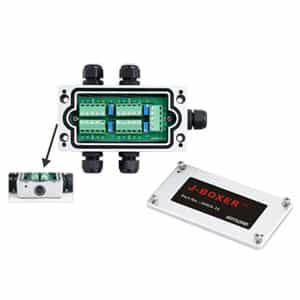

The Anyload J04EA-16 (J-Boxer) is a compact aluminum IP67 junction box for 2–4 load cells, featuring individual excitation trim, independent potentiometers, a preinstalled GORE breather vent, and captive stainless steel screws. FM, ATEX, and IECEx approved versions are available.
PRODUCT DETAILS
The J04EA-16 is a compact, precision-engineered aluminum junction box designed for platform and multi-cell weighing systems requiring up to 4 load cell connections in a tight, durable package. Its strong aluminum casting keeps the enclosure rigid and lightweight, making it well suited for OEM integrators and scale manufacturers who need a reliable summing solution that fits within a constrained footprint. The preinstalled GORE breather vent equalizes internal pressure while blocking moisture and contaminants, maintaining the IP67 seal over the full operating life of the installation without the pressure buildup that can compromise conventional sealed enclosures.
Individual cell excitation trimming via independent potentiometers allows precise per-channel signal adjustment, ensuring balanced output from all connected load cells regardless of minor sensitivity variations between cells. Captive stainless steel screws attached to the cover prevent loss during field service. FM Approved, and ATEX/IECEx versions are available for use in hazardous locations.
Most Common Applications: Platform and floor scales, OEM weighing system integration, industrial process scales.
| Channels | – |
|---|---|
| Number of Load Cells | 2 – 4 single cells |
| Input Cable Fittings | M16: 4 – 8 mm cable |
| Output Cable Fittings | M16: 4 – 8 mm cable |
| Enclosure Material | Aluminum casting |
| IP Rating | IP67 |
| Lightning Protection | – |
| Dimensions | 151 x 112 x 29 mm (5.94 x 4.41 x 1.14 in) |
| Weight | 0.5 kg (1.1 lb) |
