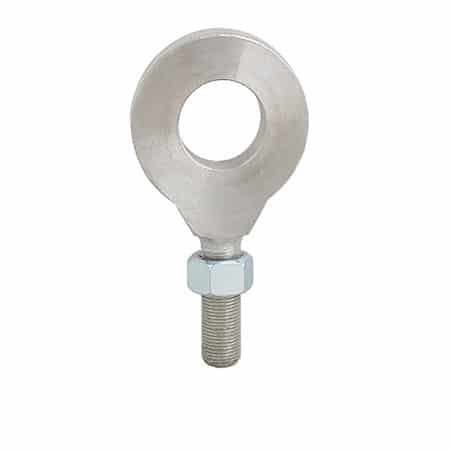

EYE / EYH Eyebolt, Alloy Steel

IMAGES

The Anyload EYE and EYH are alloy steel eyebolts designed for tension load cell and suspended weighing applications, each supplied with one jam nut. The EYE is a casted, zinc-plated low-carbon steel eyebolt available in imperial (1/4-28 UNF to 3/4-16 UNF) thread sizes with safe working loads from 0.65 Klb to 5.5 Klb (295 kg to 2,495 kg). The EYH is a forged, zinc-plated medium-carbon steel heavy-duty variant, available in imperial (3/4-16 UNF to 1-1/4-12 UNF) with safe working loads from 11,000 lbs to 22,000 lbs (4,910 kg to 9,777 lb).
