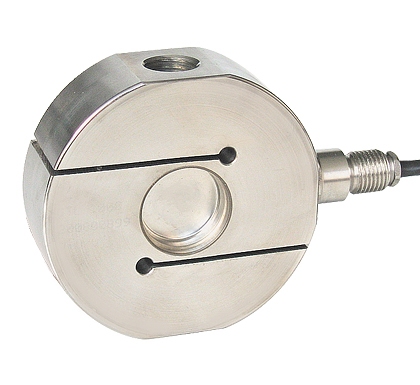

CTL Stainless Steel S-Type Load Cell
The Laumas CTL is a 17-4PH stainless steel S-type tension and compression load cell with OIML R60 C3 certification and IP68 (+ optional IP69K) protection. With combined error ≤ ±0.02%, a 2 mV/V ± 0.1% rated output, and a compensated range of −20°C to +70°C, it is the high-capacity, high-sealing choice for stainless-steel-required tension and compression weighing in food processing, pharmaceutical, and washdown-intensive industrial environments. Dual-bridge redundancy is available on request.
PRODUCT DETAILS
The CTL is a premium 17-4PH precipitation-hardened stainless steel S-type tension and compression load cell engineered for high-capacity, high-accuracy certified weighing in corrosive, washdown-intensive, and hygienic industrial environments. Available from 100 kg to 12,500 kg (220 lb to 27,558 lb) in OIML R60 C3 accuracy class, the CTL delivers combined error ≤ ±0.02% and 2 mV/V ± 0.1% full-scale output, making it the preferred choice for demanding legal-for-trade and certified industrial weighing applications where both high capacity and certified stainless steel construction are required.
IP68 full-immersion sealing is standard across all capacities, and IP69K certification — provide protection against high-pressure steam jet cleaning at 100 bar and 80°C — is available on request for the most demanding food and pharmaceutical washdown applications. The operating temperature range of −30°C to +90°C (−22°F to +194°F) and compensated range of −10°C to +40°C (14°F to +104°F) accommodate both outdoor and indoor industrial process environments. An optional dual 350 Ω Wheatstone bridge configuration provides dual-channel redundant output for safety-critical monitoring systems. Ball-and-socket joint accessories (galvanized C40 steel and stainless) are available across all capacity sizes. ATEX and IECEx certifications are available on request.
Most Common Applications: Heavy-capacity hopper and tank weighing in food processing and pharmaceutical plants, high-capacity industrial tension weighing requiring stainless construction, suspended weighing in corrosive chemical environments, safety-critical redundant weighing systems, heavy industrial compression force measurement.
| Capacities | 100 kg (220 lb), 200 kg (441 lb), 300 kg (661 lb), 500 kg (1,102 lb), 1,000 kg (2,205 lb), 2,500 kg (5,512 lb), 5,000 kg (11,023 lb), 7,500 kg (16,535 lb), 10,000 kg (22,046 lb), 12,500 kg (27,558 lb) |
|---|---|
| Combined Error | ≤ ±0.02% |
| Non-Linearity | – |
| Safe Overload | 150% of full scale |
| Ultimate Overload | 300% of full scale |
| Full Scale Output | 2 mV/V ± 0.1% |
| Maximum Excitation | 15 V DC |
| Input Resistance | 350 Ω ± 5 |
| Output Resistance | 350 Ω ± 2 |
| Operating Temperature | −30°C to +90°C (−22°F to +194°F) |
| Compensated Temperature | −10°C to +40°C (14°F to +104°F) |
| Sealing Standard | IP68 (IP69K on request) |
| Material | 17-4PH Stainless Steel |
| Protective Coating | – |
