CK Miniature Compression Load Cell

IMAGES
ATEX IECEx

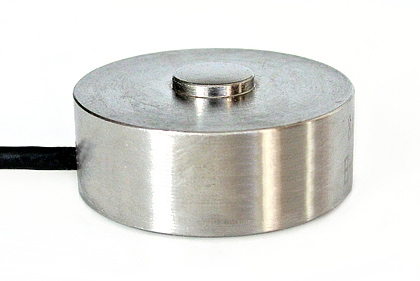

The Laumas CK is a miniature 17-4 PH stainless steel low-profile compression button type load cell available in capacities of 200 kg, 500 kg, 1,000 kg, and 2,500 kg (441 lb, 1,102 lb, 2,205 lb, and 5,512 lb) with IP67 protection and a combined error of ≤ ±0.5%. ATEX/IECEx certified versions are available, making it suited for precise compression force measurement in compact and OEM applications.

PRODUCT DETAILS

The CK is a miniature 17-4 PH stainless steel low-profile compression load cell, designed for applications where a very small load cell footprint is essential and where compression force measurement at moderate accuracy is required. Particularly suited to OEM integration, compact weighing systems, and applications where standard-sized compression button type would not physically fit. Its 17-4 PH stainless steel construction provides inherent corrosion resistance, and the IP67 rating protects against dust and temporary water immersion. Operating range extends to – 20°C to +70°C (- 4°F to 158°F). Cable is 5 m (16.4 ft). Safe overload is 120% – lower than standard button load cell – reflecting the miniature body design. ATEX/IECEx certified versions are available for hazardous area applications.

Most Common Applications: OEM compression force measurement, compact industrial weighing systems, machine tool force monitoring, structural compression measurement in tight spaces, laboratory and test equipment force sensing.

Capacities

200 kg (441 lb), 500 kg (1,102 lb), 1,000 kg (2,205 lb), 2,500 kg (5,512 lb)

Combined Error

≤ ±0.5% FS

Non-Linearity

Safe Overload

120% of full scale

Ultimate Overload

200% of full scale

Full Scale Output

1.0 mV/V ±15%

Maximum Excitation

15 V DC

Input Resistance

400 Ω ±100

Output Resistance

350 Ω ±5

Operating Temperature

−20°C to +70°C (−4°F to +158°F)

Compensated Temperature

−10°C to +50°C (14°F to +122°F)

Sealing Standard

IP67

Material

17-4 PH Stainless Steel

Protective Coating
