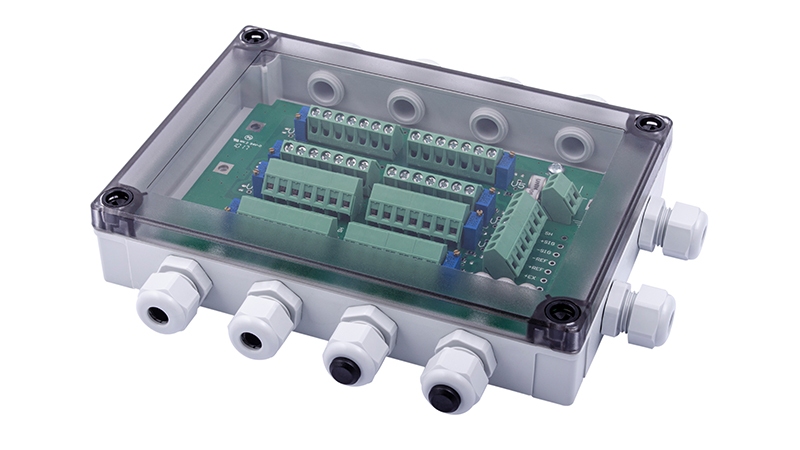

CE81PN ABS Equalization Junction Box
The Laumas CE81PN is an ABS IP67 equalization junction box for up to 8 load cells, with lightning and electrical shock protection and 8+2 M16×1.5 polyamide cable glands (or 8+2 PVC sheath fittings for CE81PNR version). It supports both 4 and 6-wire connections and delivers reliable per-cell analog equalization for large multi-cell platform and industrial scales in environments from −20°C to +60°C (−4°F to +140°F).
PRODUCT DETAILS
The CE81PN is a full-scale 8-channel equalization junction box in a rugged IP67 ABS enclosure, built for multi-point weighing systems where signal balancing across all load cells is required for accurate summed output. Supporting up to 8 load cells through 8+2 M16×1.5 polyamide cable glands (or 8+2 PVC sheath fittings for CE81PNR version), the CE81PN is well suited to large platform scales, multi-cell floor scales, weighbridges, and industrial process scales where a high channel count and field-accessible equalization are needed.
The integrated lightning and electrical shock protection device safeguards load cell signals and instrumentation from transient voltage spikes caused by nearby lightning strikes or electrical faults — an important feature for outdoor installations and large-scale industrial weighing systems. Per-cell potentiometer trimming (50 Ω per channel) allows technicians to manually balance individual cell outputs on-site. The transparent ABS lid gives a clear view of terminal connections without opening the enclosure.
Most Common Applications: Large platform and floor scales, weighbridges, industrial tank and silo weighing, agricultural weigh systems.
| Channels | – |
|---|---|
| Number of Load Cells | Up to 8 |
| Input Cable Fittings | CE81PN: 8+2 polyamid cable glands M16x1.5 – plugs, CE81PN: 8+2 PVC sheath fittings |
| Output Cable Fittings | M16 x 1.5 |
| Enclosure Material | ABS |
| IP Rating | IP67 |
| Lightning Protection | Yes |
| Dimensions | 180 x 130 x 35 mm (7.1 x 5.1 x 1.4 in) |
| Weight | – |
