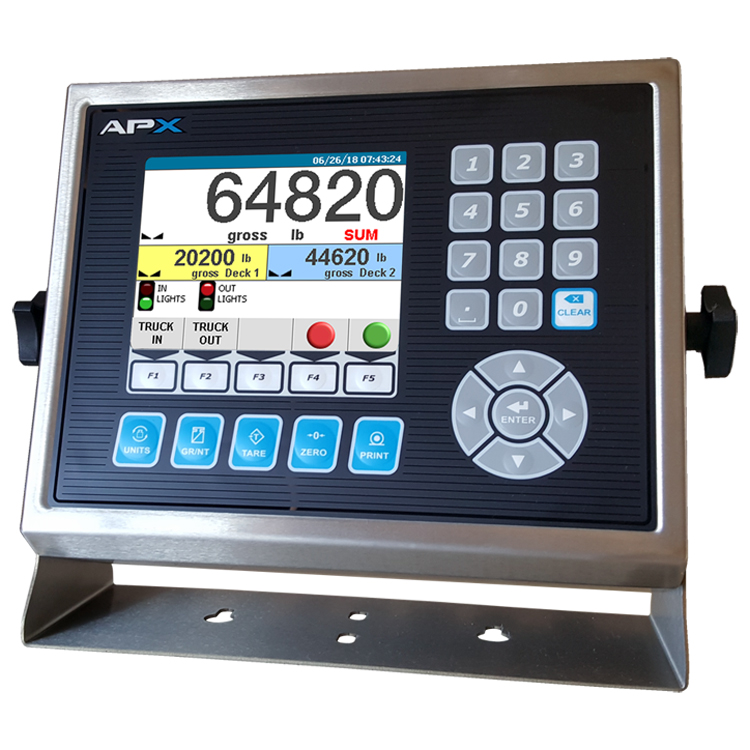

APX Programmable Weight Indicator
The Western Scale APX is a top-of-the-line programmable weight indicator with a full-colour TFT LCD graphic display, ARM Cortex processor, modular design, Ethernet connectivity, NTEP Class III/IIIL and Measurement Canada Class III/IIIHD approval. Suitable for standard or custom truck in/out, axle weighing, accumulation, and factory-programmed solutions across the most demanding weighing systems.
PRODUCT DETAILS
The APX is a fully programmable, network-ready platform designed for complex weighing systems that demand the highest level of display capability, connectivity, and customization. Its ARM Cortex processor drives a full-color TFT LCD graphic display showing up to four scales simultaneously along with real-time application status, giving operators clear situational awareness in multi-zone environments such as truck weighbridges, multi-platform industrial systems, and automated process lines.
The modular hardware design simplifies field upgrades and service, and the removable SD card provides additional backup memory. Built-in Ethernet (TCP/IP, 10/100 Base T) combined with two RS-232 and one RS-422 serial port plus a USB-A host port covers the most common standard communication from simple printer output to APXLink Software for each truck transaction download to a local computer. NEMA 4X / IP65 certification and a 304 stainless steel swivel bracket enclosure ensure reliable performance in washdown and outdoor environments.
Most Common Applications: Commercial truck weighbridges, axle-by-axle weight enforcement, multi-platform industrial process weighing, grain elevator and mine site operations, custom Original Equipment Manufacturer (OEM) weighing system integration.
| Power Supply | 100 to 240 VAC 50/60 Hz |
|---|---|
| Display | TFT LCD full-colour graphic display, 4.6 x 3.2 in (320 x 240 pixels) |
| Enclosure | 304 stainless steel |
| Communications & Output | 2x RS-232 & 1x RS-422 serial ports, USB-A port, Ethernet TCP/IP 10/100 Base T, optional wireless RF module |
| Load Cell Input | up to 32 pcs 350 Ω or 64 pcs 700 Ω |
| Resolution | up to 100,000 display divisions |
| Operating Temperature | -10°C to 40°C (14°F to 104°F) |
| Dimensions | 12.5 x 9.75 x 4.5 in (318 x 248 x 114 mm) |
| Approvals | NTEP Class III/IIIL 15-086, Measurement Canada Class III/IIIHD AM-5992 |
