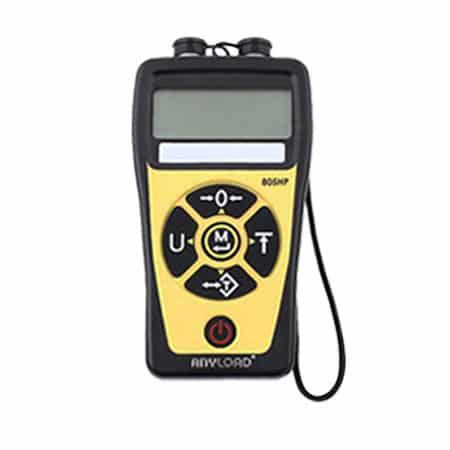

805HP Handheld Weight Indicator
The Anyload 805HP is a compact ABS handheld weight indicator powered by three AA batteries with up to 1,600 hours of battery life, a 6-digit LCD with LED backlight, IP65 protection, and a wide operating temperature range of -20°C to 70°C (-4°F to 158°F). Designed for portable field, maintenance, and test weighing applications requiring a long-life, lightweight indicator.
PRODUCT DETAILS
The 805HP is a purpose-built portable handheld weight indicator designed for technicians, maintenance teams, and field operators who need a lightweight, long-lasting, and durable indicator for spot-weighing, load cell testing, and field measurement. Powered by three standard AA alkaline batteries with up to 1,600 hours of operation, the 805HP eliminates the recharging logistics required by lithium or lead-acid battery indicators – a significant advantage for service technicians and field inspectors who may be far from power sources for extended periods. The panoramic FSTN LCD with LED backlight provides excellent viewing angles and legibility even in challenging lighting conditions.
IP65 sealing protects against dust and water spray in outdoor and light-industrial environments. The wide operating temperature range of -20°C to 70°C (-4°F to 158°F) extends usability into cold storage, refrigerated transport, and hot industrial environments beyond the range of most standard indicators. Non-volatile memory ensures calibration and configuration data is retained through battery changes. Auto power-off and power-saving timing extend field battery life further. The 805HP supports up to eight 350 Ω load cells in parallel, making it suitable for basic multi-cell scale testing as well as single-cell portable applications.
Most Common Applications: Load cell field testing and calibration verification, field inspection and receiving, cold storage and refrigerated transport weighing, construction site.
| Power Supply | 3 x AA alkaline batteries |
|---|---|
| Display | 0.66 in (16.8 mm) 6-digit LCD |
| Enclosure | ABS, IP65 |
| Communications & Output | RS 232 (available on 805HP-02) |
| Load Cell Input | Up to 8 pcs 350 Ω or 32 pcs 1,000 Ω load cells |
| Resolution | – |
| Operating Temperature | -20°C to 70°C (-4°F to 158°F) |
| Dimensions | 6.7 x 3.9 x 1.34 in (170 x 98 x 34 mm) |
| Approvals | – |
