266AH Compression Load Cell

IMAGES
ATEX FM IECEx

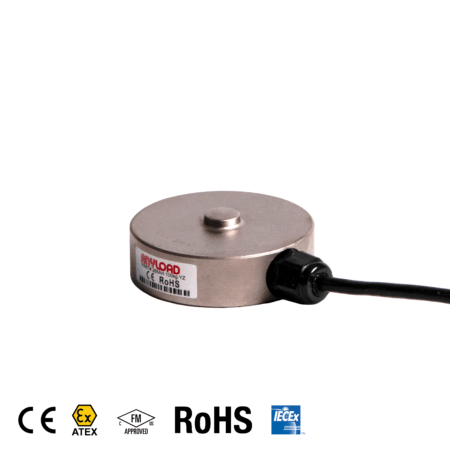

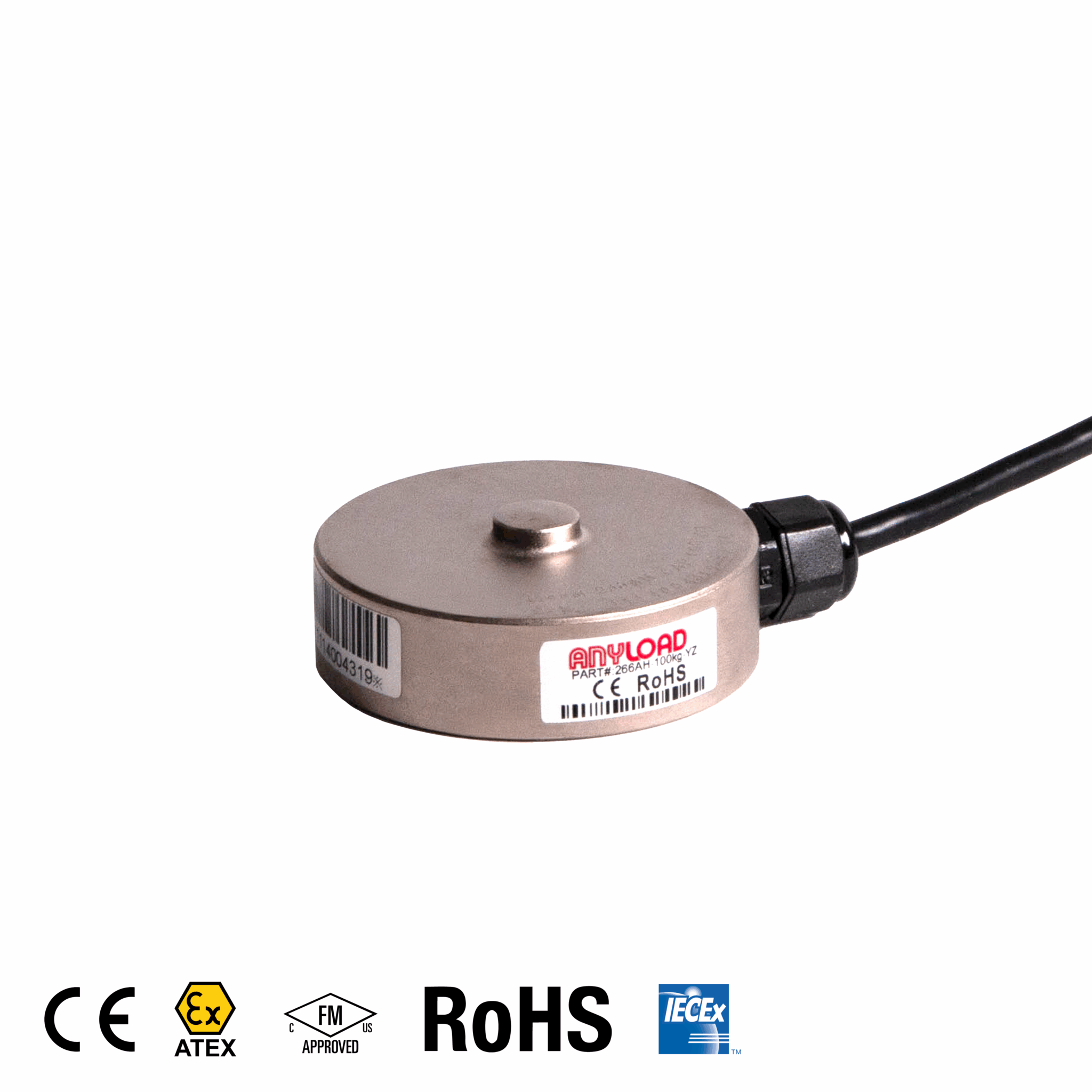

The Anyload 266AH is a nickel plated alloy steel low-profile compression button type load cell with a patent-design body, available in capacities from 100 kg to 30,000 kg/30 t (220 lb to 66,139 lb) with a welded IP67 seal and a full scale output of 2.0 mV/V ±1%. With ATEX, FM, and IECEx certified versions, it is designed for industrial tank, vessel, and silo compression weighing across a wide capacity range.

PRODUCT DETAILS

The 266AH is a nickel plated alloy steel low-to-high capacity compression button type load cell and is the higher capacity design of the 266AA. It comes with a welded IP67 alloy steel body for greater environmental protection and higher capacities. The 266AH is installed at tank, vessel, silo, and hopper support points to provide compression-based weight measurement in industrial process and bulk storage applications. Cable length is 3 m for capacity ≤ 2 t and 10 m for capacity ≥ 3 t. ATEX, FM, and IECEx approved versions carry the “-Ex” suffix.

Most Common Applications: Industrial tank and vessel compression weighing, silo and hopper support measurement, bulk storage inventory management, chemical and food process tank monitoring, heavy-capacity OEM compression force sensing.

Capacities

100 kg (220 lb), 200 kg (441 lb), 300 kg (661 lb), 500 kg (1,102 lb), 1 t (2,205 lb), 2 t (4,409 lb), 3 t (6,614 lb), 5 t (11,023 lb), 10 t (22,046 lb), 20 t (44,092 lb), 30 t (66,139 lb)

Combined Error

Non-Linearity

< ±0.2% FS (≤2 t); < ±0.05% FS (≥3 t)

Safe Overload

150% of full scale

Ultimate Overload

300% of full scale

Full Scale Output

2.0 mV/V ±1%

Maximum Excitation

15 VDC

Input Resistance

400 Ω ±20 (≤2 t); 770 Ω ±30 (≥3 t)

Output Resistance

350 Ω ±3 (≤2 t); 700 Ω ±5 (≥3 t)

Operating Temperature

-30°C to 70°C/-20°F to 160°F

Compensated Temperature

−10°C to +50°C (14°F to +122°F)

Sealing Standard

IP67

Material

Alloy Steel

Protective Coating

Nickel Plated
