266AA Compression Load Cell

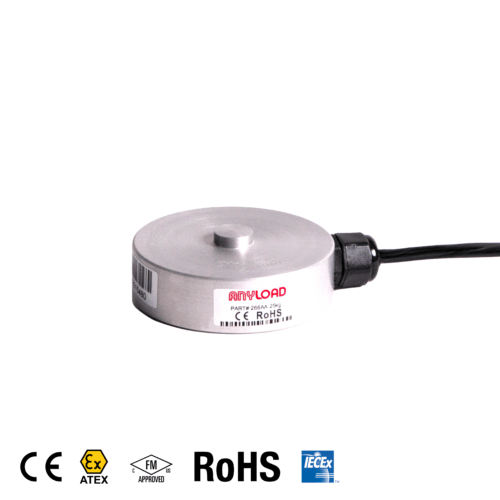

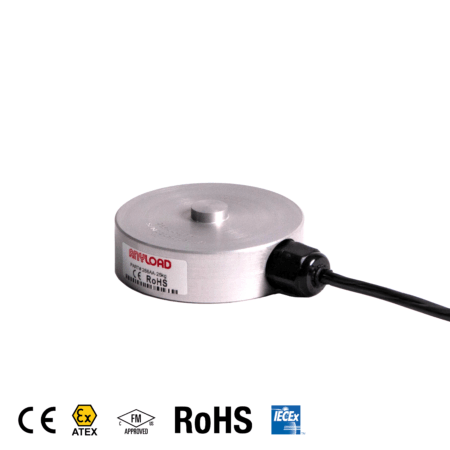

The Anyload 266AA is a clear anodized aluminum low-profile compression disk load cell with a patent-design body, available in 25 kg and 50 kg (55 lb and 110 lb) capacities with IP66 protection and a full scale output of 2.0 mV/V ±1%. Designed for light-duty compression weighing and force measurement in OEM and laboratory applications, with ATEX, FM, and IECEx certified versions available.
PRODUCT DETAILS
The 266AA is the aluminum low-capacity variant of the 266 button type compression load cell family, covering 25 kg and 50 kg (55 lb and 110 lb) for the lightest compression weighing and force measurement applications. Its clear anodized aluminum construction keeps the cell lightweight while providing corrosion resistance and a clean appearance suitable for laboratory, food processing, and OEM equipment integration.The design ensures uniform load distribution while maintaining a very low installation height. Sealed to IP66, it resists dust and water spray in light industrial and laboratory environments. Cable is 5.1 mm x 3 m (9.8 ft). Mounting hardware must be ordered separately. ATEX, FM, and IECEx approved versions carry the “-Ex” suffix.
Most Common Applications: Light-duty OEM compression force measurement, laboratory and test equipment weighing, compact bench scale support points, food processing equipment force monitoring, precision low-capacity compression weighing.
| Capacities | 25 kg (55 lb), 50 kg (110 lb) |
|---|---|
| Combined Error | – |
| Non-Linearity | < ±0.2% FS |
| Safe Overload | 150% of full scale |
| Ultimate Overload | 300% of full scale |
| Full Scale Output | 2.0 mV/V ±1% |
| Maximum Excitation | 15 VDC |
| Input Resistance | 400 Ω ±20 |
| Output Resistance | 350 Ω ±3 |
| Operating Temperature | -30°C to 70°C/-20°F to 160°F |
| Compensated Temperature | −10°C to +50°C (14°F to +122°F) |
| Sealing Standard | IP66 |
| Material | Aluminum |
| Protective Coating | Clear Anodized |
