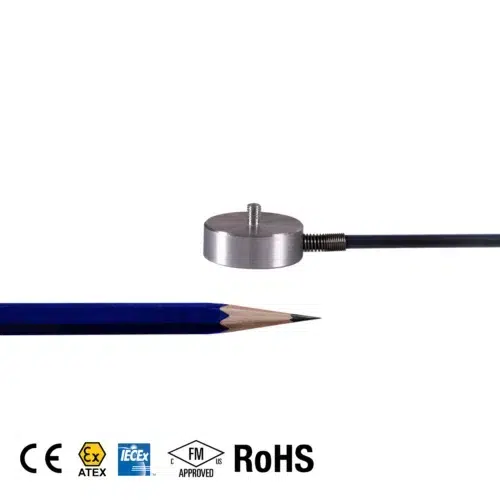

247AA Miniature Compression Load Cell

IMAGES
ATEX FM IECEx

The Anyload 247AA is a miniature clear anodized aluminum compression load button available in capacities from 1 kg to 20 kg (2.2 lb to 44 lb) with IP66 protection and a full scale output of 1.0 mV/V ±20%. Designed for OEM integration, laboratory force measurement, and precision compression sensing in the most compact applications, with ATEX, FM, and IECEx certified versions available.

PRODUCT DETAILS

The 247AA is a miniature aluminum compression load button covering ultra-low capacities from 1 kg to 20 kg (2.2 lb to 44 lb) for the most compact and lightweight force measurement applications. A load button is a very small compression sensor designed to be mounted in tight spaces such as machine frames, structural connections, or test fixtures where a standard load cell would not fit. The 247AA’s clear anodized aluminum body is extremely lightweight while providing corrosion resistance and a clean appearance for laboratory and clean-room environments. Sealed to IP66, it resists dust and water spray in light industrial and laboratory settings. Cable length is 2 m (6.6 ft). ATEX, FM, and IECEx approved versions carry the “-Ex” suffix.

Most Common Applications: OEM compression force measurement in machine frames and test fixtures, laboratory precision force sensing, automotive assembly line force monitoring, sports science and biomechanics equipment, compact industrial process force control.

Capacities

1 kg (2.20 lb), 2 kg (4.41 lb), 5 kg (11.02 lb), 10 kg (22.05 lb), 20 kg (44.09 lb)

Combined Error

Non-Linearity

< ±0.5% FS

Safe Overload

150% of full scale

Ultimate Overload

300% of full scale

Full Scale Output

1.0 mV/V ±20%

Maximum Excitation

15 VDC

Input Resistance

375 Ω ±25

Output Resistance

350 Ω ±3

Operating Temperature

–18°C to 65°C/0°F to 149°F

Compensated Temperature

−10°C to +40°C (14°F to +104°F)

Sealing Standard

IP66

Material

Aluminum

Protective Coating

Clear Anodized
