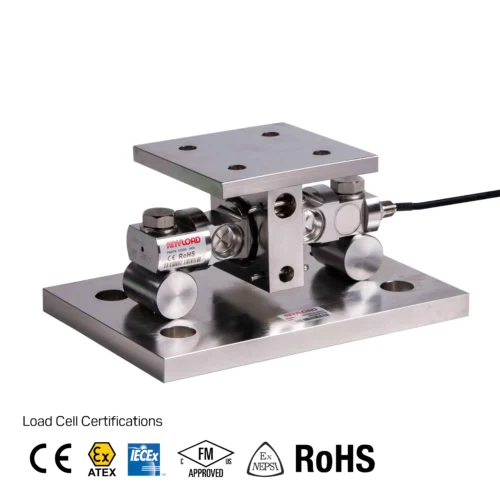

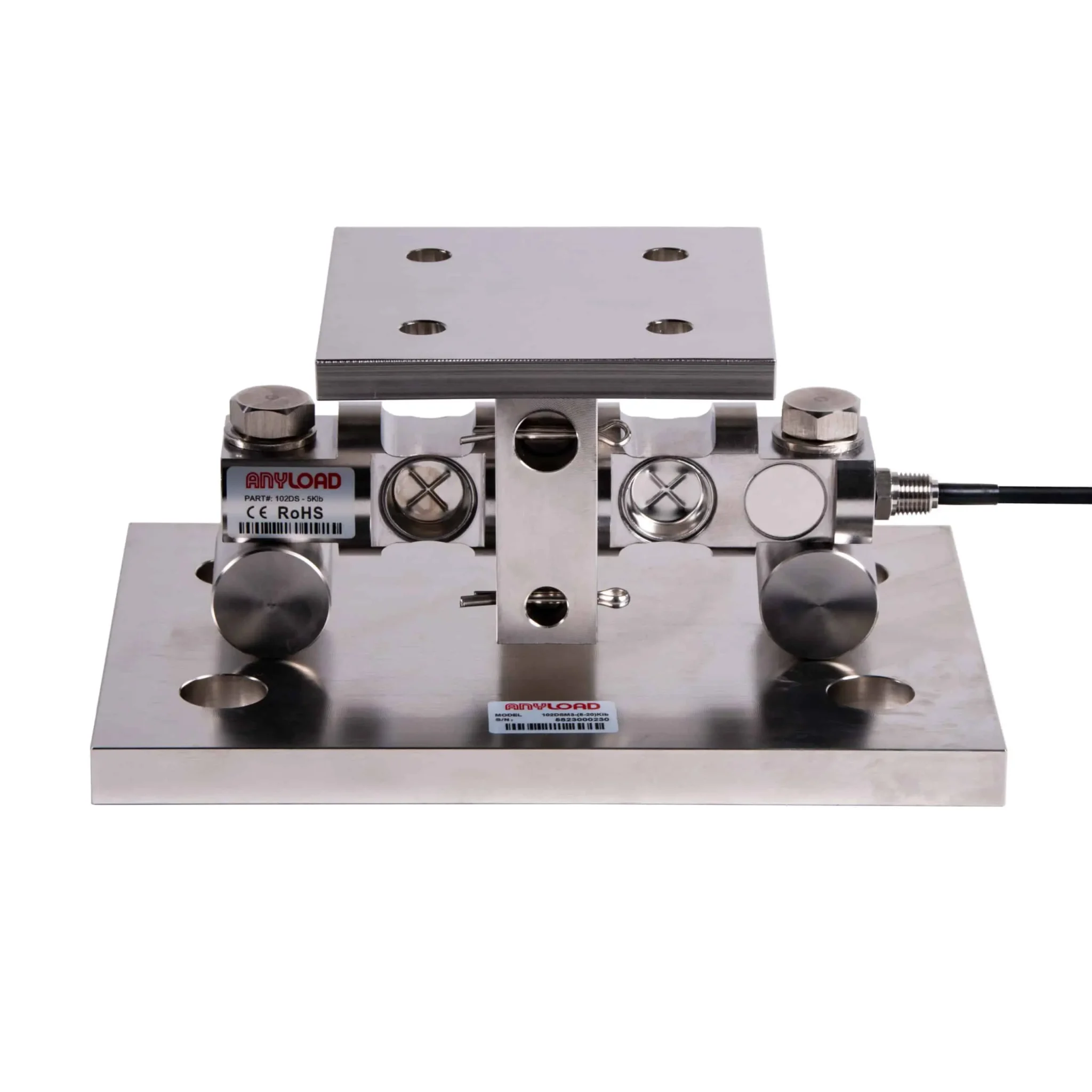

The Anyload 102DSM3 is a stainless steel weigh module for 102DS double-ended beam load cells, available in capacities from 5,000 lb to 250,000 lb. Center-pivoted and self-checking with lifting protection, it features a sliding pin design for thermal expansion compensation in corrosive and hygienic environments.
The 102DSM3 is the stainless steel counterpart to the 102DHM3, providing the same center-pivoted, self-checking performance and sliding pin thermal expansion compensation for double-ended shear beam load cells across the same 5,000 lb to 250,000 lb capacity range — but in stainless steel for corrosive, hygienic, and washdown environments.
The center-pivoted design ensures accurate load distribution at each support point while anti-lifting protection prevents module displacement under uplift, wind, and seismic forces. The sliding pin accommodates thermal expansion and contraction of the weighed structure without transmitting lateral or bending loads to the load cell. Stainless steel construction makes the 102DSM3 ideal for food, pharmaceutical, chemical, and outdoor applications where corrosion resistance is critical.
Most Common Applications: Stainless steel tank and vessel weighing, food and pharmaceutical process vessel scales, outdoor silo and storage tank scales, chemical processing hopper weighing.
| Capacities | 102DSM3-(5-20)Klb: 5,000 lb to 20,000 lb (2,268 kg to 9,072 kg); 102DSM3-(30-75)Klb: 30,000 lb to 75,000 lb (13,608 kg to 34,019 kg); 102DSM3-100Klb: 100,000 lb (45,359 kg); 102DSM3-150Klb: 150,000 lb (68,039 kg); 102DSM3-(200-250)Klb: 200,000 lb to 250,000 lb (90,718 kg to 113,398 kg) |
|---|---|
| Material | Stainless Steel |
