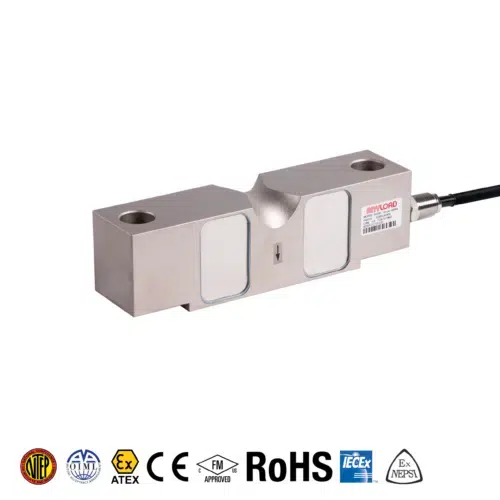

102BH Double-Ended Shear Beam Load Cell
The Anyload 102BH is a nickel plated alloy steel double-ended shear beam load cell available in capacities from 10,000 to 400,000 lb (4,536 to 181,437 kg ) with IP67 protection and a full scale output of 3.0 mV/V ±0.25%. Carrying NTEP Class IIIL and OIML MAA C3 certifications for legal-for-trade use, with ATEX, FM, and IECEx certified versions available.
PRODUCT DETAILS
The 102BH is the widest-capacity nickel plated alloy steel double-ended shear beam, covering an extensive range from 10,000 to 400,000 lb (4,536 to 181,437 kg). This makes it one of the broadest capacity ranges available in a single double-ended beam product family, suited for everything from industrial tank and hopper weighing through heavy truck scale and large vessel weighing. Sealed to IP67, the 102BH achieves a full scale output of 3.0 mV/V ±0.25% with non-linearity, hysteresis, and creep all below ±0.023%. NTEP Class IIIL certification (multiple cell nmax of 1:10,000) qualifies the 102BH for legal-for-trade weighing in the United States and Canada for capacities from 25,000 to 125,000 lb. OIML MAA C3 (minimum verification interval Y=7,500) for 10 to 50 ton range. IP68 welded seal and lightning protection versions are available for 60,000 lb and 75,000 lb capacities. ATEX, FM, and IECEx approved versions carry the “-Ex” suffix.
Most Common Applications: Truck scales, platform scales, tank and hopper weighing, heavy vessel weighing, legal-for-trade commercial weighing, large-capacity industrial process weighing.
| Capacities | 10,000 lb (4,536 kg), 20,000 lb (9,072 kg), 25,000 lb (11,340 kg), 40,000 lb (18,144 kg), 50,000 lb (22,680 kg), 60,000 lb (27,216 kg), 75,000 lb (34,019 kg), SE100,000 lb (45,359 kg), 100,000 lb (45,359 kg), 125,000 lb (56,699 kg), 200,000 lb (90,718 kg), 300,000 lb (136,078 kg), 400,000 lb (181,437 kg) |
|---|---|
| Combined Error | – |
| Non-Linearity | < ±0.023% FS |
| Safe Overload | 150% of full scale |
| Ultimate Overload | 300% of full scale |
| Full Scale Output | 3.0 mV/V ±0.25% |
| Maximum Excitation | 15 VDC |
| Input Resistance | 700 Ω ±10 |
| Output Resistance | 700 Ω ±5 |
| Operating Temperature | – |
| Compensated Temperature | −10°C to +50°C (14°F to +122°F) |
| Sealing Standard | IP67 |
| Material | Alloy Steel |
| Protective Coating | Nickel Plated |
