102AH Double-Ended Shear Beam Load Cell

IMAGES
ATEX C/US IECEx OIML

The Anyload 102AH is a nickel plated alloy steel double-ended shear beam load cell available in capacities from 11,023 lb to 110,231 lb (5 to 50 t) with IP67 protection and a full scale output of 2.0 mV/V ±0.25%. ATEX, FM, and IECEx certified versions are available for hazardous area applications.

PRODUCT DETAILS

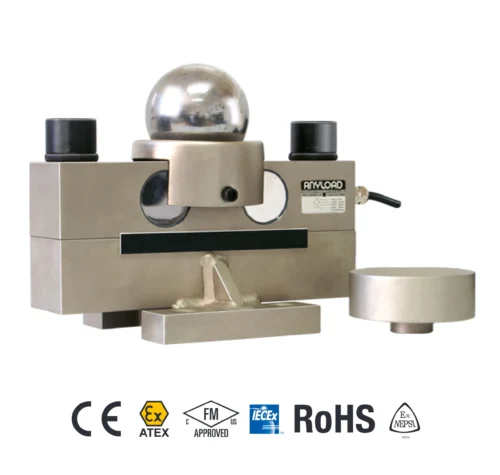

The 102AH is a mid-to-high capacity nickel plated alloy steel double-ended shear beam load cell, covering a range from 11,023 lb to 110,231 lb (5,000 to 50,000 kg). Mounting hardware is included with the load cell, simplifying installation on tank legs, hopper supports, and platform scale frames. Sealed to IP67 and constructed from nickel plated alloy steel, the 102AH is suited for industrial platform, tank, and vessel weighing in challenging outdoor and industrial environments. Full scale output is 2.0 mV/V ±0.25% with a compensated temperature range of -10°C to +50°C (14°F to 122°F) and an excitation of up to 15 V DC. Non-linearity, hysteresis, and creep are all less than ±0.023% for the standard range, with repeatability below ±0.017%. Safe overload is 150% and breaking overload is 300% of full scale. ATEX, FM, and IECEx approved versions are available with the “-Ex” suffix.

Most Common Applications: Tank and hopper weighing, platform scales, vessel weighing, industrial process weighing, batch processing systems.

Capacities

5 t (11,023 lb), 10 t (22,046 lb), 15 t (33,069 lb), 20 t (44,092 lb), 25 t (55,116 lb), 30 t (66,139 lb), 50 t (110,231 lb)

Combined Error

Non-Linearity

< ±0.023% FS

Safe Overload

150% of full scale

Ultimate Overload

300% of full scale

Full Scale Output

2.0 mV/V ±0.25%

Maximum Excitation

15 VDC

Input Resistance

770 Ω ±30

Output Resistance

700 Ω ±5

Operating Temperature

–30°C to 70°C (-20°F to 160°F)

Compensated Temperature

−10°C to +50°C (14°F to +122°F)

Sealing Standard

IP67

Material

Alloy Steel

Protective Coating

Nickel Plated
