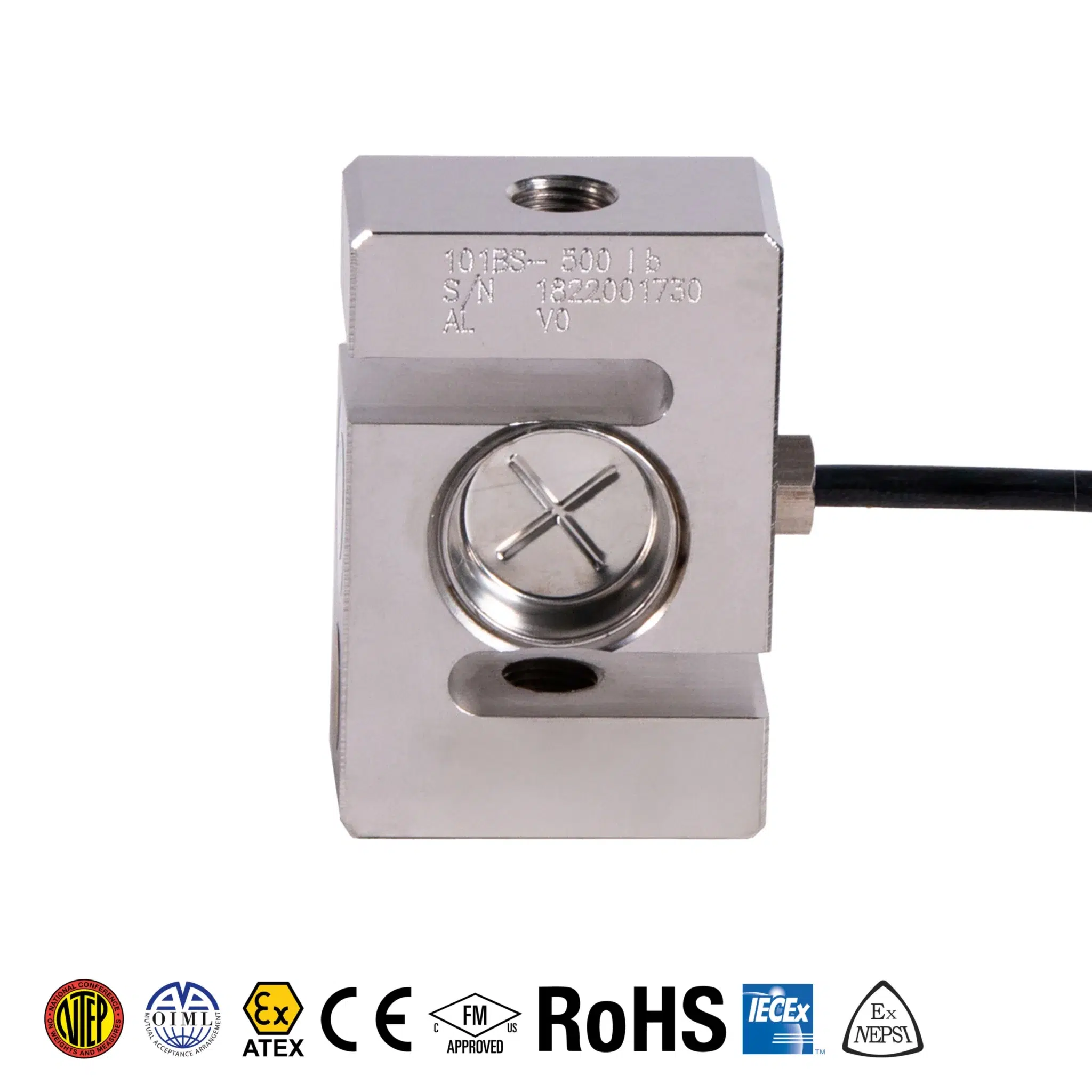

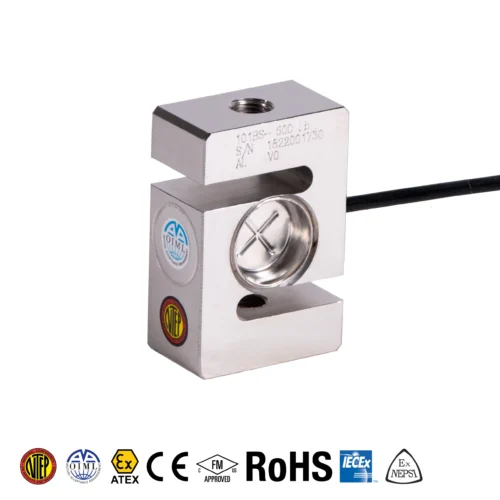

101BS Stainless Steel S-Type Load Cell
The Anyload 101BS is a 17-4PH stainless steel S-beam load cell with NTEP Class III and OIML MAA C3/C4.5 certification, IP68 welded seal, FM approval, and an operating temperature range of −30°C to 70°C (−22°F to 158°F). Built for washdown-intensive food processing, chemical, and pharmaceutical environments, it is the premium stainless steel S-beam for high-capacity certified tension and compression weighing.
PRODUCT DETAILS
The 101BS is a heavy-duty 17-4PH stainless steel S-beam load cell engineered for high-capacity certified tension and compression weighing in corrosive, washdown-intensive, and hostile process environments. Available from 300 kg to 10,000 kg and 500 lb to 20,000 lb with NTEP Class III and OIML MAA C3/C4.5 dual certification, the 101BS is the premium stainless steel S-beam for legal-for-trade weighing in food processing, chemical, and pharmaceutical facilities where alloy steel sensors cannot withstand the cleaning chemicals, moisture, and regulatory requirements of the operating environment. The IP68 welded stainless steel seal provides full waterproof protection against continuous immersion and high-pressure washdown — meeting the demands of the most aggressive CIP cleaning cycles encountered in food and dairy processing.
With an operating temperature range of −30°C to 70°C (−22°F to 158°F), the 101BS maintains accurate performance across the full range of outdoor and indoor industrial temperatures encountered in North American operations. The 2 mV/V ± 1% output connects to load cell indicators, transmitters, data acquisition systems, and Analog output signal conditioners for PLC and SCADA-based process monitoring. FM approval supports North American hazardous-area applications, and ATEX/IECEx “-Ex” suffix versions are available.
Most Common Applications: Hopper and tank weighing in food processing, dairy, pharmaceutical, and chemical plants; high-capacity tension weighing in washdown-duty industrial environments; stainless-required certified process weighing; OEM integration in food-grade weighing systems.
| Capacities | 300 kg (661 lb), 500 kg (1,102 lb), 1000 kg (2,205 lb), 2000 kg (4,409 lb), 3000 kg (6,614 lb), 5000 kg (11,023 lb), 10000 kg (22,046 lb), 500 lb (227 kg), 1,000 lb (454 kg), 1,500 lb (680 kg), 2,000 lb (907 kg), 2,500 lb (1,134 kg), 3,000 lb (1,361 kg), 5,000 lb (2,268 kg), 10,000 lb (4,536 kg), 15,000 lb (6,804 kg), 20,000 lb (9,072 kg) |
|---|---|
| Combined Error | – |
| Non-Linearity | < ±0.023% FS |
| Safe Overload | 150% of full scale |
| Ultimate Overload | 300% of full scale |
| Full Scale Output | 2.0 mV/V ± 1% |
| Maximum Excitation | 15 V DC |
| Input Resistance | 400 Ω ± 20 |
| Output Resistance | 350 Ω ± 3 |
| Operating Temperature | −30°C to 70°C (−22°F to 158°F) |
| Compensated Temperature | −10°C to 50°C (14°F to 122°F) |
| Sealing Standard | IP68 |
| Material | 17-4PH Stainless Steel |
| Protective Coating | – |
